Linear Vibrating Screen Sieve For Wood Chip
Linear Vibrating Screen Sieve For Wood Chip is a kind of closed and light weight vibrating sieve equipment, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multilayer Linear Vibrating Screen Sieve For Wood Chip, and be discharged from each outlets.
Stainless steel for contacting parts
Full carbon steel rotary vibrating screen
The following table shows the detailed data of different models of Linear Vibrating Screen Sieve For Wood Chip for your reference.
| Model | Size of screen surface | Number of layers of screen | Mesh size | Number of vibration | Amplitude | Motor power |
| DZSF520 | 500X2000 | 1~6 | 2~400 mesh | 960r/min | 4~8 | 2x0.4 |
| DZSF825 | 800X2500 | 2X(0.4-0.75) |
| DZSF1020 | 1000X2000 | 2X(0.75-1.5) |
| DZSF1030 | 1000X3000 |
| DZSF1230 | 1200X3000 | 2X(0.75-3) |
| DZSF1530 | 1500X3000 |
| DZSF1540 | 1500X4000 |

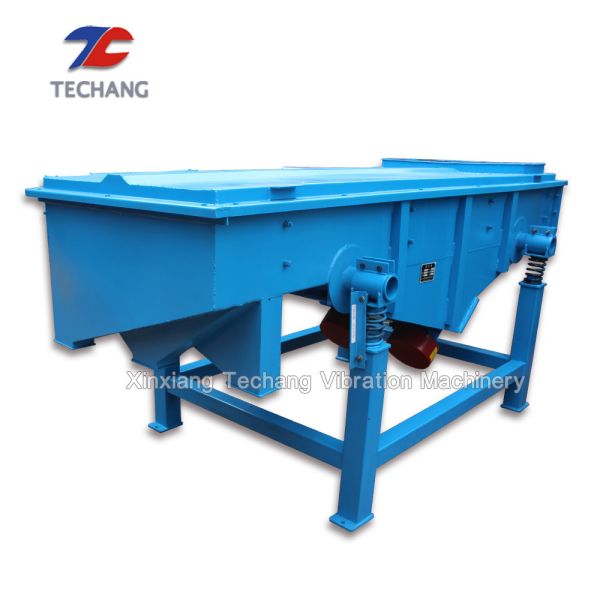

Linear Vibrating Screen Sieve For Wood Chip is made of vibrating motor, inlet, outlet, screen mesh, screen frame, spring, support base, and so on. The following pictures will help you to know more about it.
Features
1. Low energy consumption, high efficiency
2. Simple structure, easy to maintenance
3. Full closed structure, no dust flying
4. Sieving accuracy reach to 400 mesh, 6 layers
Linear Vibrating Screen Sieve For Wood Chip is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
Product Tags:
|
|
Wood Chip Vibro Sieve Machine 50KG/H - 100T/H Capacity Full Closed Structure Images
|
